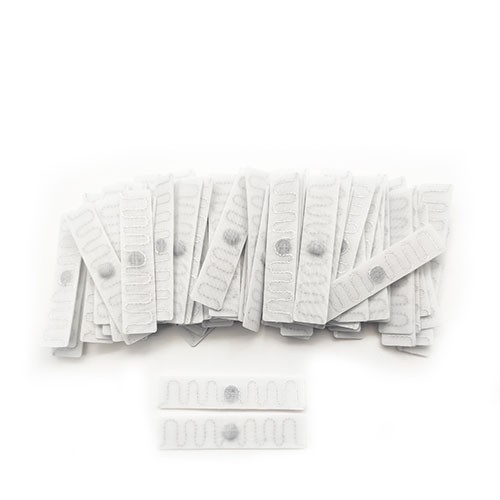

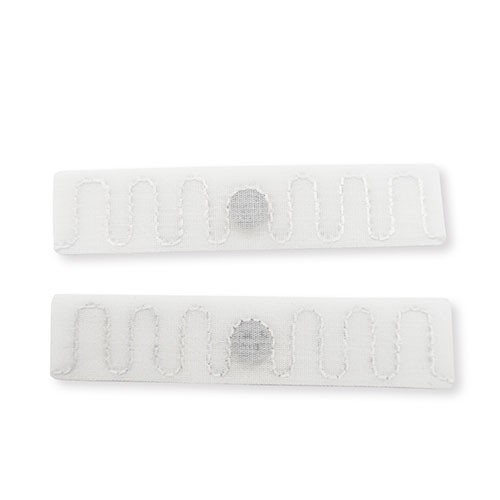

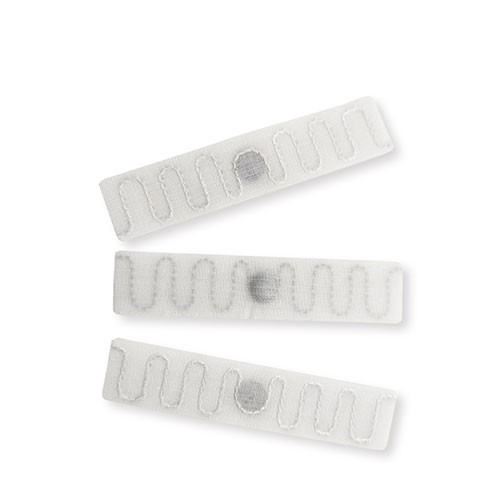

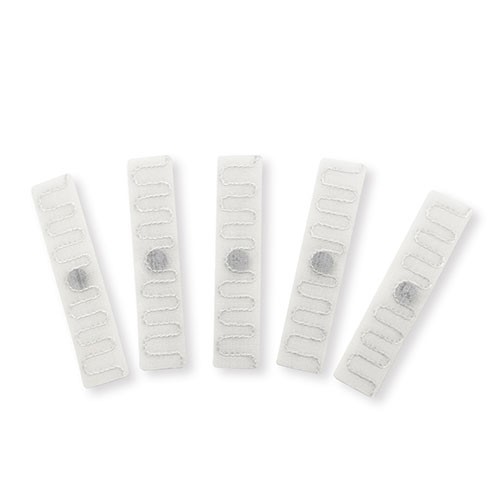

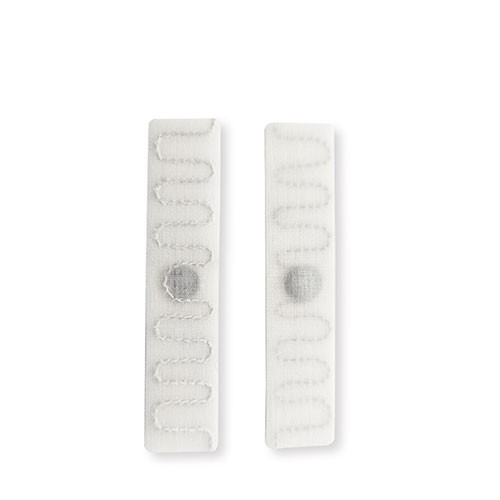

RFID textil tvättlapp

RFID textiltvättetikett tål industriell tvätt mer än 200 gånger. När det gäller industriell och medicinsk tvätt kan den motstå 60 bar atmosfärstryck, stabil och pålitlig prestanda.

Produktapplikation:
* Industriell tvätt;
* Hantering av personal- och skoluniformer;
* Medicinsk klädhantering;
* Militär klädselhantering;
* Personalpatrullledning;
* Produktionsledning av klädfabriker.

RF Specifications
RF Air Protocol	EPC Global Class 1 Gen2 ISO18000-6C
Operating Frequency	UHF 866-868 MHz (ETSI) /UHF 902-928 MHz (FCC)
Environment Compatibility	Optimized in Air
Data Retention Period	50 Years
Read Range	Up to 5.5 m (off metal)
Polarization	Linear
IC Type	Impinj R6-P
Memory Configuration	EPC 128bit TID 96bit User 32bit

Mechanical Sepcifications
Tag Materials	Metal Wire
Surface Materials	Textile
Dimensions (mm)	15701.5 mm
Weight (g)	0.7g
Attachment	L-T7015S: Sew in the hem or woven label L-T7015P: Heat-sealing at 215℃@15 sec & 4 bars
Color	White

Environmetal Sepcifications
Operating Temperature	-30°C to +85°C
Ambient Temperature	-30°C to +100°C
Mechanical Resistance	60 bars
Chemical Resistance	Normal common chemicals in the washing processes
Heat Resistance	Washing: 90℃, 15 mins, 200 cycles
	Pre-drying: 180℃, 30 mins
	Ironing: 180℃, 10 sec, 200 cycles
	Sterilization: 135℃, 20 mins
IP Classfication	IP68
Shock and Vibration	MIL STD 810-F
Certifications	CE approved RoHS approved ATEX/IECEx certified
Warranty	2 year or 200 times of washing
